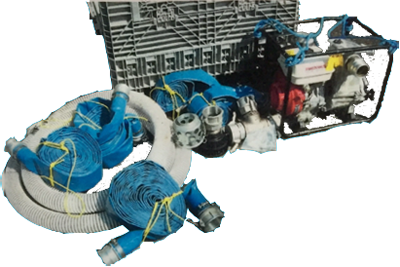

Shoreline Flushing Kit

Cold Water Deluge/Flushing Kit

Function

Cold-water Deluge uses high volume/low pressure water flow to wet the surface of a shoreline segment. If there is no previous oil impact, the wetting will prevent oil from adhering to the shoreline. Flooding the beach raises the water-table, lifting oil from the sediment. Cold-water Deluge is most effective when deployed before oil impact. If oil has impacted a shoreline area, cold-water Deluge is used as a clean-up technique, washing the oil down slope to the water for recovery

Each system contains the following components

Description

Quantity

Kit Dimensions

Length 48" x Wide 43" x Height 20"

Weight

705 lbs.

3" x 20' suction hose

1

3" x 50' wash hose

2

3" x 50' discharge hose

1

3" camlock strainer

1

3" threaded strainer

1

3" tee fitting

1

3" camlock cap

2

3" centrifugal Pump

1

Pump Specifications

Rated Capacity

320 gal./min.

Total Head

89 ft.

Suction Head

26 ft.

Miscellaneous Equipment

cresent wrench (#10, #12)

2

small spade shovel

1

bucket 5 gal. (prime pump)

1

cable ties

25

fuel can

1

funnel

1

lube oil 10/30

2 qt.

small tool box

1

Transportation Modes

C-130

DC-6

DC-3

737

Beaver

Otter

Cessna 206

Cessna 185

Heli

Barge

Tug (only)

Lrg F/V

Sml F/V

P/U

check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark

Locations & Quantities

Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W

Zone 2
Craig
55°29'18.28"N 133°08'24.67"W

Zone 3
Petersburg
56°48'28.84"N 132°58'13.91"W
Wrangell
56°28'14.69"N 132°23'06.98"W

Zone 4
Kake
56°58'21.84"N 133°56'26.67"W

Zone 5
Sitka
57°06'53.48"N 135°23'31.89"W

Zone 6
Gustavus
58°25'21.35"N 135°42'42.36"W
Pelican
57°57'27.84"N 136°13'32.69"W

Zone 7
Juneau
58°17'26.76"N 134°23'33.26"W

Zone 8
Haines
59°14'08.76"N 135°27'51.73"W
Skagway
59°27'09.90"N 135°19'20.26"W

Zone 9
Yakutat
59°32'46.34"N 139°44'05.36"W

(1)
Warehouse

(1)
Connex #74
