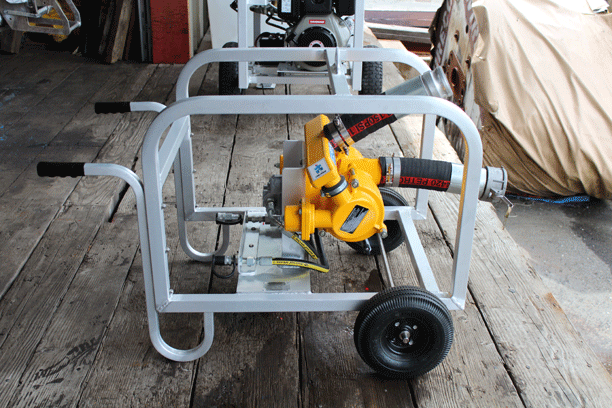

Crucial 3 inch Transfer Pump

Crucial 3" Transfer Pump

Function

The Crucial coated disc skimming systems employ two (2) transfer pump types.

The Agnum model MPC5520WB pump is a high volume hydraulically driven diaphram pump.

The Spate PD75 is a high speed, reciprocating pump. The pump can also be applied to a variety of transfer pumping duties and is particularly usefil in difficult applications.

Both pumps handles crude oil, indefinte dry running, handles sand and grit, flows up to 200 gal per hour, and are automatic priming.

Specifications

Manufacture(s)

Crucial

Model

MCP

Pump type

Spate/Diaphram

Dimensions L x W x H (in)

31.5" x 20.7" x 18.1"

Weight (lbs)

155

Inlet diameter (in)

3"

Discharge diameter (in)

3"

Housing material

Cast aluminum

Prime mover

Diesel hydraulic power plant

Power required, hydraulic (hp)

N/A

Hydraulic requirements

6 gpm, 1,500 psi max.

Pump speed (rpm)

1,500

Capacity (bbl/hr)

200

Transportation Modes

C-130

DC-6

DC-3

737

Beaver

Otter

Cessna 206

Cessna 185

Heli

Barge

Tug (only)

Lrg F/V

Sml F/V

P/U

check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark
check mark

Locations & Quantities

Zone 1
Ketchikan
55°23'47.94"N 131°43'45.85"W

Zone 2
Craig
55°29'18.28"N 133°08'24.67"W

Zone 3
Petersburg
56°48'28.84"N 132°58'13.91"W
Wrangell
56°28'14.69"N 132°23'06.98"W

Zone 4
Kake
56°58'21.84"N 133°56'26.67"W

Zone 5
Sitka
57°06'53.48"N 135°23'31.89"W

Zone 6
Gustavus
58°25'21.35"N 135°42'42.36"W
Pelican
57°57'27.84"N 136°13'32.69"W

Zone 7
Juneau
58°17'26.76"N 134°23'33.26"W

Zone 8
Haines
59°14'08.76"N 135°27'51.73"W
Skagway
59°27'09.90"N 135°19'20.26"W

Zone 9
Yakutat
59°32'46.34"N 139°44'05.36"W

(1)
Warehouse

(1)
Connex#35
Wrangell

(1)
Connex #01

(1)
Connex#61
Pelican

(1)
Connex#72

(1)
Connex#84
Skagway
